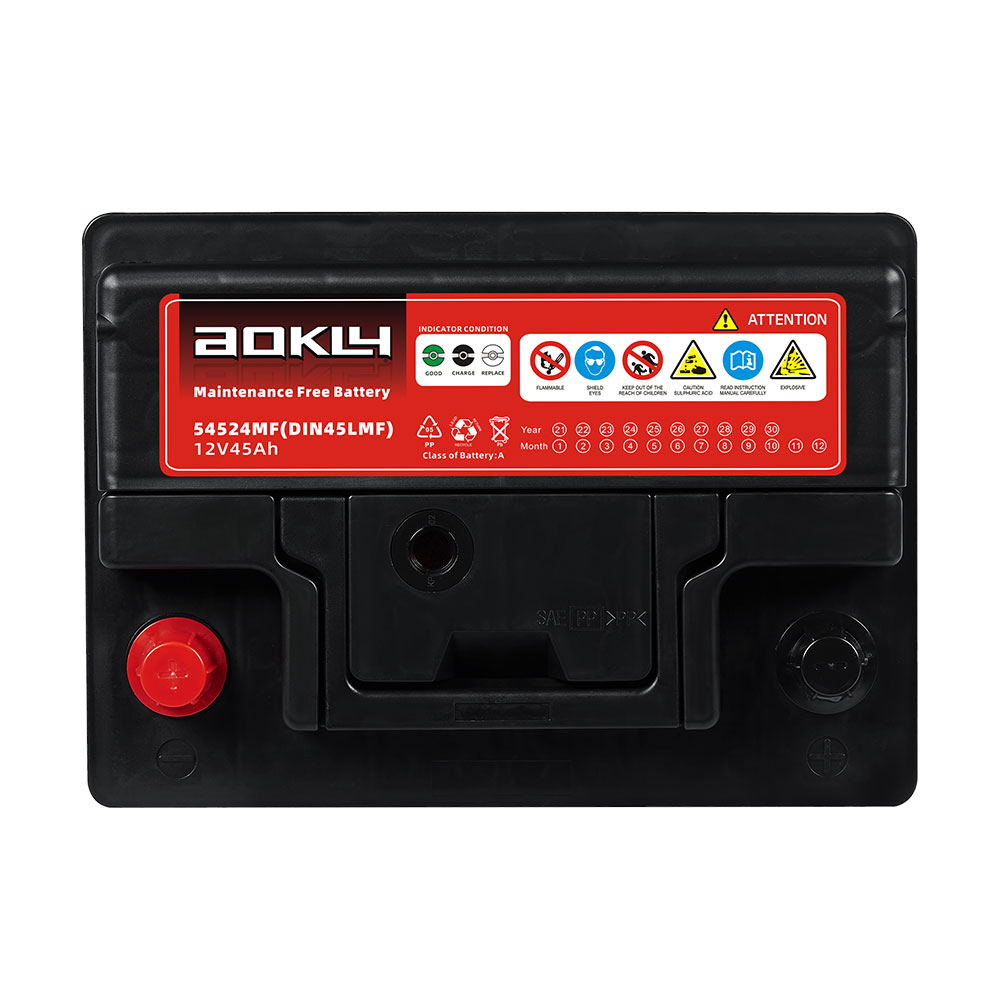

54524LMF
Description
Voltage : 12V
Capacity : 45Ah
Size : 240*175*190*190(L*W*H*T)mm
Voltage : 12V
Capacity : 45Ah
Size : 240*175*190*190(L*W*H*T)mm
1. Expanded technology, the unique Pb-Ca alloy formulation, with low water losing has been adopted, enabled the low self-discharge
2. 30% extra starting power compared to a standard battery
3. Extended product life in extreme hot or cold operating temperatures.
4 .Strong polypropylene container, advance lead calcium alloy and special diachylum method
5. The super- thin glass fiber in separator ( or PE envelop) And reduces the short circuit of plates group, reduce the electric resistance
6. Heat sealed lid, maximize strength and prevent electrolyte leakage
EN Standard Battery (SMF) | ||||||||||
No. | Gr.No | Model | Capacity | RC | Dimension(mm) | Lay-out | Terminal | |||
MINS | Length | Width | Height | T.Height | ||||||
1 | LB1 | 54321MF(DIN43MF) | 12V43AH | 63 | 210 | 175 | 175 | 175 | 0 | B |
2 | 54322MF | 12V43AH | 63 | 210 | 175 | 175 | 175 | 1 | B | |
3 | 54459MF(DIN44MF) | 12V44AH | 64 | 210 | 175 | 175 | 175 | 0 | B | |
4 | 54464MF(DIN44LMF) | 12V44AH | 64 | 210 | 175 | 175 | 175 | 1 | B | |
5 | 54512MF(DIN45MF) | 12V45AH | 66 | 210 | 175 | 175 | 175 | 1 | B | |
6 | L1 | 54419MF(DIN44MF) | 12V44AH | 64 | 210 | 175 | 190 | 190 | 1 | B |
7 | 55530MF(DIN55MF) | 12V55AH | 81 | 210 | 175 | 190 | 190 | 1 | B | |
8 | LB2 | 54524MF(DIN45MF) | 12V45AH | 66 | 210 | 175 | 175 | 175 | 0 | B |
9 | 56044MF(DIN60LMF) | 12V60AH | 90 | 240 | 175 | 175 | 175 | 0 | B | |
10 | 56044LMF(DIN60MF) | 12V60AH | 90 | 240 | 175 | 175 | 175 | 1 | B | |
11 | 54519MF(DIN45MF) | 12V45AH | 66 | 240 | 175 | 175 | 175 | 0 | B | |
12 | 55565MF(DIN55LMF) | 12V55AH | 81 | 240 | 175 | 175 | 175 | 1 | B | |
13 | 55530MF(DIN55MF) | 12V55AH | 81 | 240 | 175 | 175 | 175 | 0 | B | |
14 | 56077MF(DIN60MF) | 12V60AH | 90 | 240 | 175 | 175 | 175 | 0 | B | |
15 | 56078MF(DIN60LMF) | 12V60AH | 90 | 240 | 175 | 175 | 175 | 0 | B | |
16 | 56220MF(DIN62LMF) | 12V62AH | 91 | 240 | 175 | 175 | 175 | 1 | B | |
17 | 56243MF(DIN62MF) | 12V62AH | 91 | 240 | 175 | 175 | 175 | 0 | B | |
18 | LB3 | 57024MF(DIN70MF) | 12V70AH | 120 | 274 | 175 | 175 | 175 | 0 | B |
19 | 57520MF(DIN75MF) | 12V75AH | 128 | 274 | 175 | 175 | 175 | 0 | B | |
20 | 57520LMF(DIN75LMF) | 12V75AH | 128 | 274 | 175 | 175 | 175 | 1 | B | |
21 | L3 | 56618MF(DIN66MF) | 12V66AH | 115 | 274 | 175 | 190 | 190 | 0 | B |
22 | 57024MF(DIN70MF) | 12V70AH | 120 | 274 | 175 | 190 | 190 | 0 | B | |
23 | 57220MF(DIN72MF) | 12V72AH | 125 | 274 | 175 | 190 | 190 | 0 | B | |
24 | 57219MF(DIN72LMF) | 12V72AH | 125 | 274 | 175 | 190 | 190 | 1 | B | |
25 | 57413MF(DIN74LMF) | 12V74AH | 126 | 274 | 175 | 190 | 190 | 1 | B | |
26 | 57412MF(DIN74MF) | 12V74AH | 126 | 274 | 175 | 190 | 190 | 0 | B | |
27 | 57524MF(DIN75MF) | 12V75AH | 128 | 274 | 175 | 190 | 190 | 0 | B | |
28 | 58033MF(DIN80MF) | 12V80AH | 135 | 274 | 175 | 190 | 190 | 0 | B | |
29 | 58044MF(DIN80LMF) | 12V80AH | 135 | 274 | 175 | 190 | 190 | 1 | B | |
30 | L4 | 58043MF(DIN80MF) | 12V80AH | 135 | 311 | 175 | 190 | 190 | 0 | B |
31 | 58812MF(DIN88MF) | 12V88AH | 150 | 311 | 175 | 190 | 190 | 0 | B | |
32 | 60018MF(DIN100MF) | 12V100AH | 170 | 311 | 175 | 190 | 190 | 0 | B | |
33 | 60019MF (DIN100LMF) | 12V100AH | 170 | 311 | 175 | 190 | 190 | 1 | B | |
34 | L5 | 58827MF(DIN88MF) | 12V88AH | 150 | 350 | 175 | 190 | 190 | 0 | B |
35 | 59512MF(DIN95MF) | 12V95AH | 165 | 350 | 175 | 190 | 190 | 0 | B | |
36 | 60038MF(DIN100MF) | 12V100AH | 170 | 350 | 175 | 190 | 190 | 0 | B | |
37 | F51 | 63530MF(DIN135MF) | 12V135AH | 240 | 509 | 180 | 195 | 220 | 4 | B |
38 | 64020MF(DIN140MF) | 12V140AH | 248 | 509 | 180 | 195 | 220 | 4 | B | |
39 | G51 | 67043MF(DIN170MF) | 12V170AH | 300 | 517 | 221 | 195 | 228 | 4 | B |
40 | 68032MF(DIN180MF) | 12V180AH | 330 | 517 | 221 | 195 | 228 | 4 | B | |
41 | H52 | 70027MF(DIN200MF) | 12V200AH | 365 | 506 | 264 | 200 | 232 | 4 | B |
42 | 73011MF(DIN230MF) | 12V230AH | 385 | 506 | 264 | 200 | 232 | 4 | B | |
43 | DINCMF | 12V225AH | 376 | 506 | 264 | 200 | 232 | 4 | B |
