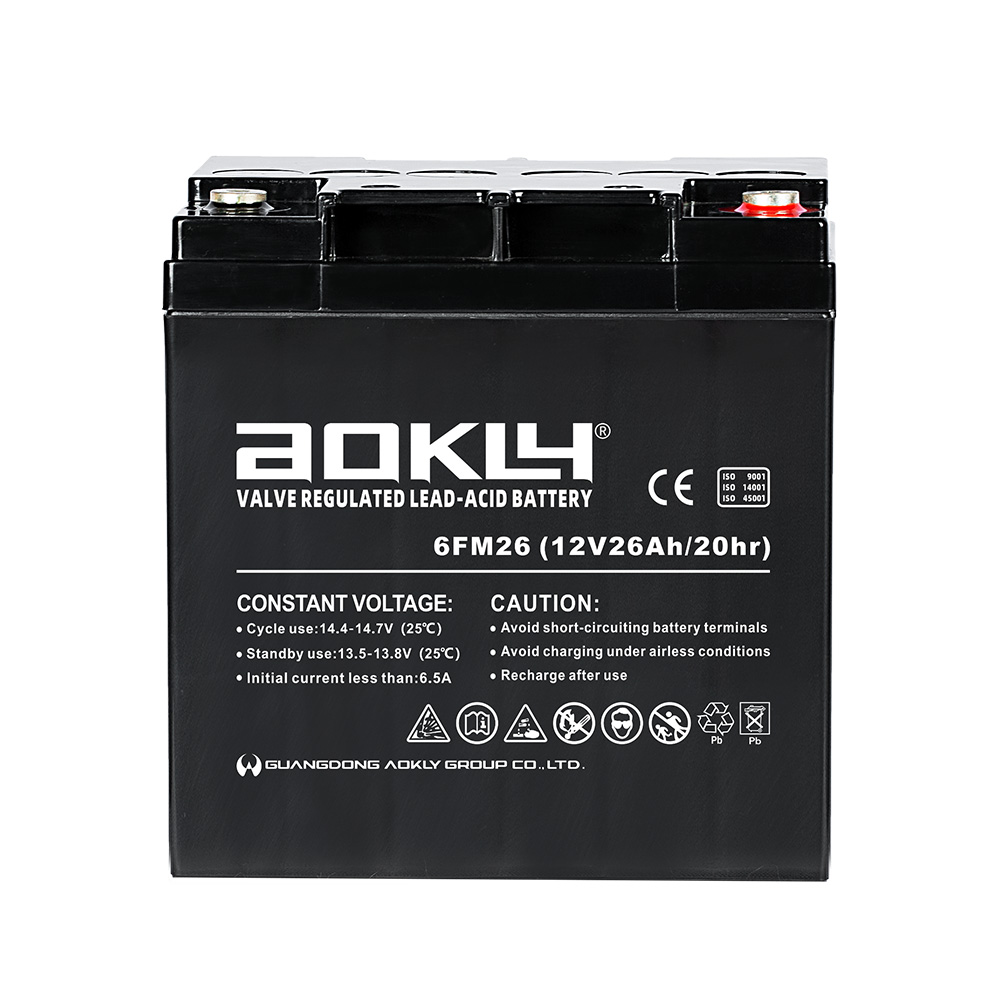

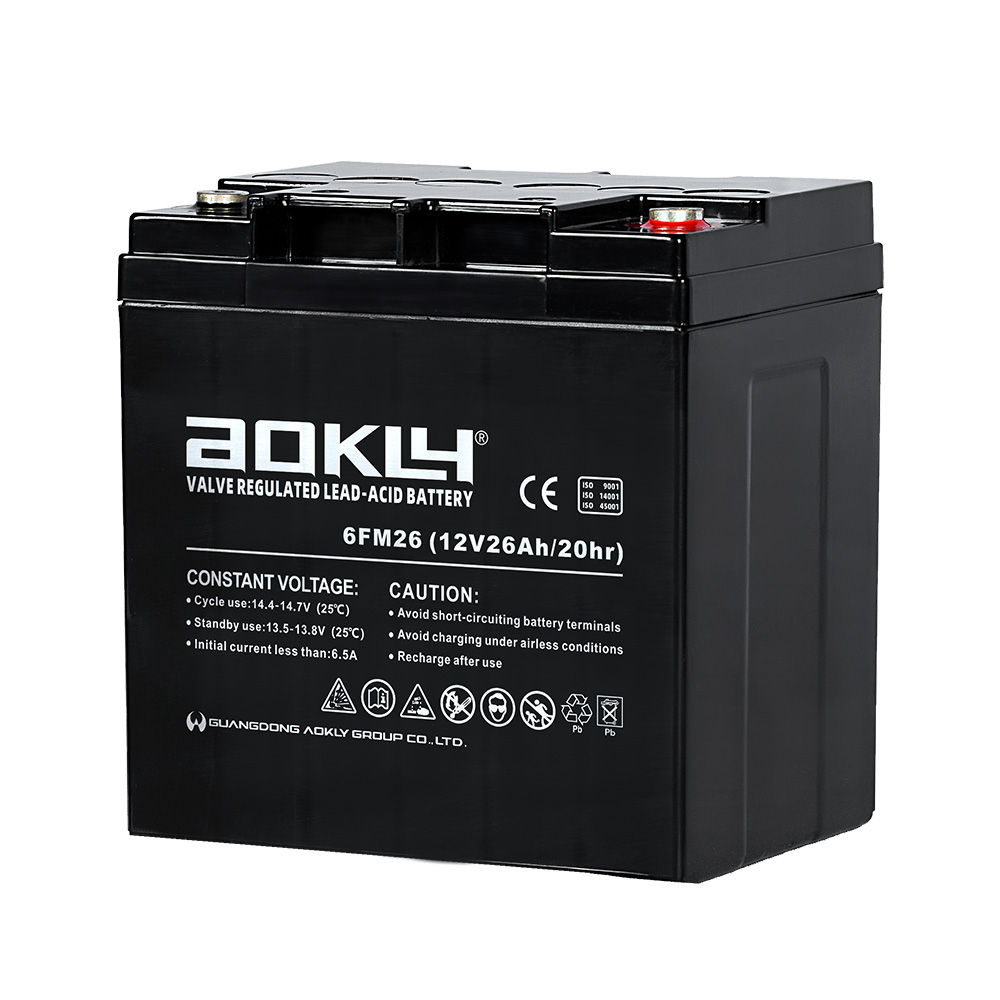

6FM26

Description

Voltage : 12V
Capacity : 26Ah
Size : 165*125.5*175*181（L*W*H*T）mm

Quick Inquiry

Features

1. Capacity range: 5Ah-26Ah
2. Voltage class:12V
3. Long design life(25℃):5 years
4. Low self-discharge rate:≤3% per month
5. High sealed reaction efficiency:≥99%
6. Excellent rate discharge performance
7. Wide operation temperature: ﹣20℃ to 60℃
8. Structure:compact design,shorter internal connectors between cells,thus low internal resistance
9. Plate:pasted flat type
10. Terminal:two or more type terminal are available
11. Separator:using improved AGM separator,makes lower resistance higher assembling pressure to increase cycle life
12. Battery case:High strength ABS(UL94-HB) and UL 94-V0 is optional
13. Terminal sealing: double sealing technic

Compliant Standards:IEC60095、GB/T19638-2005 Passed ISO9001/ISO14001/OHSAS18001/CE

FM Series

NO.	ITEMS	VOLTAGE	CAPACITY C 20	DIMENSION(mm)				NET WEIGHT	TERMINAL
NO.	NO	VOLT	AH/20HR	Length	Width	Height	Total Height	(KGS)	TYPE
1	3FM4	6	4	70	47	100	105	0.68	F1
2	3FM4.5	6	4.5	70	47	102	107	0.82	F1
3	6FM4	12	4	90	70	100	105	1.33	F1/F2
4	6FM5	12	5	90	70	100	105	1.55	F1/F2
5	6FM7	12	7	151	65	94	99	2	F1
6	6FM7.5	12	7.5	151	65	94	99	2.2	F2
7	6FM9	12	9	151	65	94	99	2.5	F2
8	6FM12	12	12	151	99	94	99	3.3	F2
9	6FM18	12	18	181	77	167	167	5.2	F3/F13
10	6FM20	12	20	181	77	167	167	5.2	F3/F13
11	6FM24	12	24	175	166	126	126	7.3	F14
12	6FM26	12	24	165	125.5	175	181	8.4	F15
