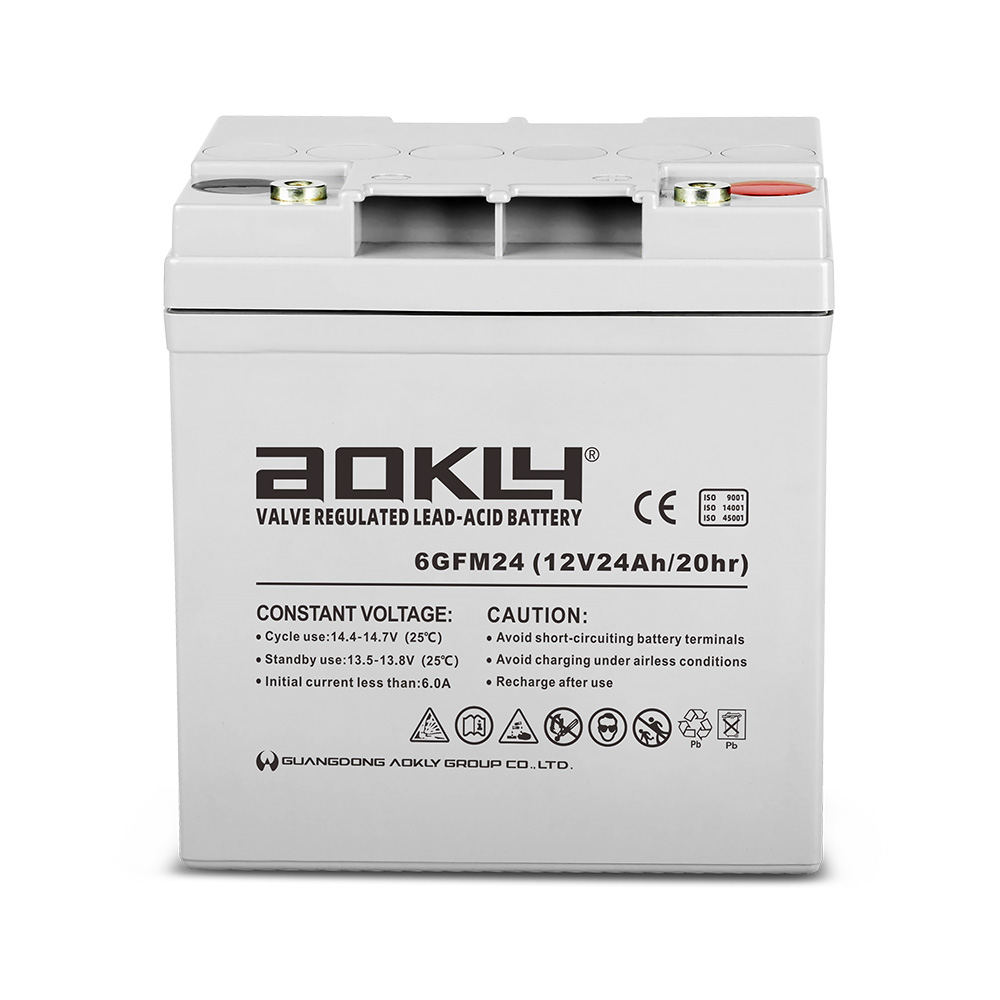

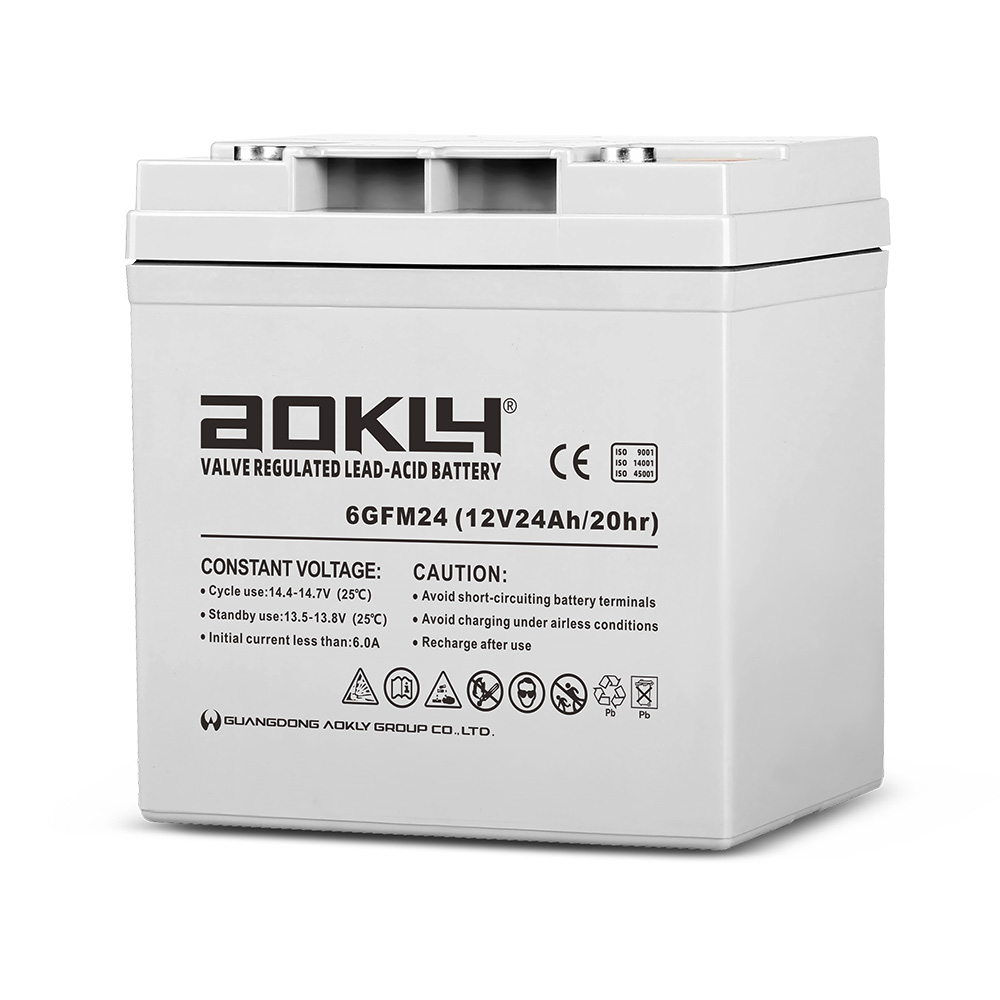

6GFM24

Description

Voltage : 12V
Capacity : 24Ah
Size : 165*125*175*181（L*W*H*T）mm

Quick Inquiry Download

Features

Capacity range: 24Ah-250Ah
Voltage class: 12V
Long design life(25℃):10 years
Low self-discharge rate≤3%/month
Good high rate discharge performance
High sealed reaction efficiency≥99%
Wide operation temperature: -20℃ to 60℃
Structure: compact design,low internal resistance,
Plate: Pasted flat type
Terminal: two or more types terminals are convenient for selection higher assembling pressure to increase deep cycle life;
Battery container: made of high strength ABS(UL94-HB)and UL94-V0 is optional;
Terminal sealing: double sealing technic (mechanical+epoxy glue).

Compliant Standards:GB/T 22199-2008、GB/T18332.1-2009 Passed ISO9001、2001; ISO14001、CE certificate

GFM Series

NO.	ITEMS	VOLTAGE	CAPACITY C 10	DIMENSION(mm)				NET WEIGHT	TERMINAL
NO.	NO	VOLT	AH/10HR	Length	Width	Height	Total Height	(KGS)	TYPE
1	6GFM24	12	24	165	125.5	175	181	8.1	F15
1	6GFM33	12	33	201	131	170	170	10	F3
2	6GFM38	12	38	198	166	170	170	11.9	F3
3	6GFM40	12	40	198	166	170	170	11.9	F3/F16
4	6GFM55	12	55	227	138	205	210	16	F4
5	6GFM65	12	65	330	172	180	185	19.9	F4
6	6GFM75	12	75	260	168	209	214	21.2	F4
8	6GFM100	12	100	329	172	216	221	28	F4/F8
9	6GFM120	12	120	409	177	207	234	33.5	F9
10	6GFM150	12	150	483.5	170	241	241	42.6	F4/F10
11	6GFM200	12	200	522	239	216	221	56.5	F5/F11
12	6GFM250	12	250	520	269	220	225	70.5	F5/F11
