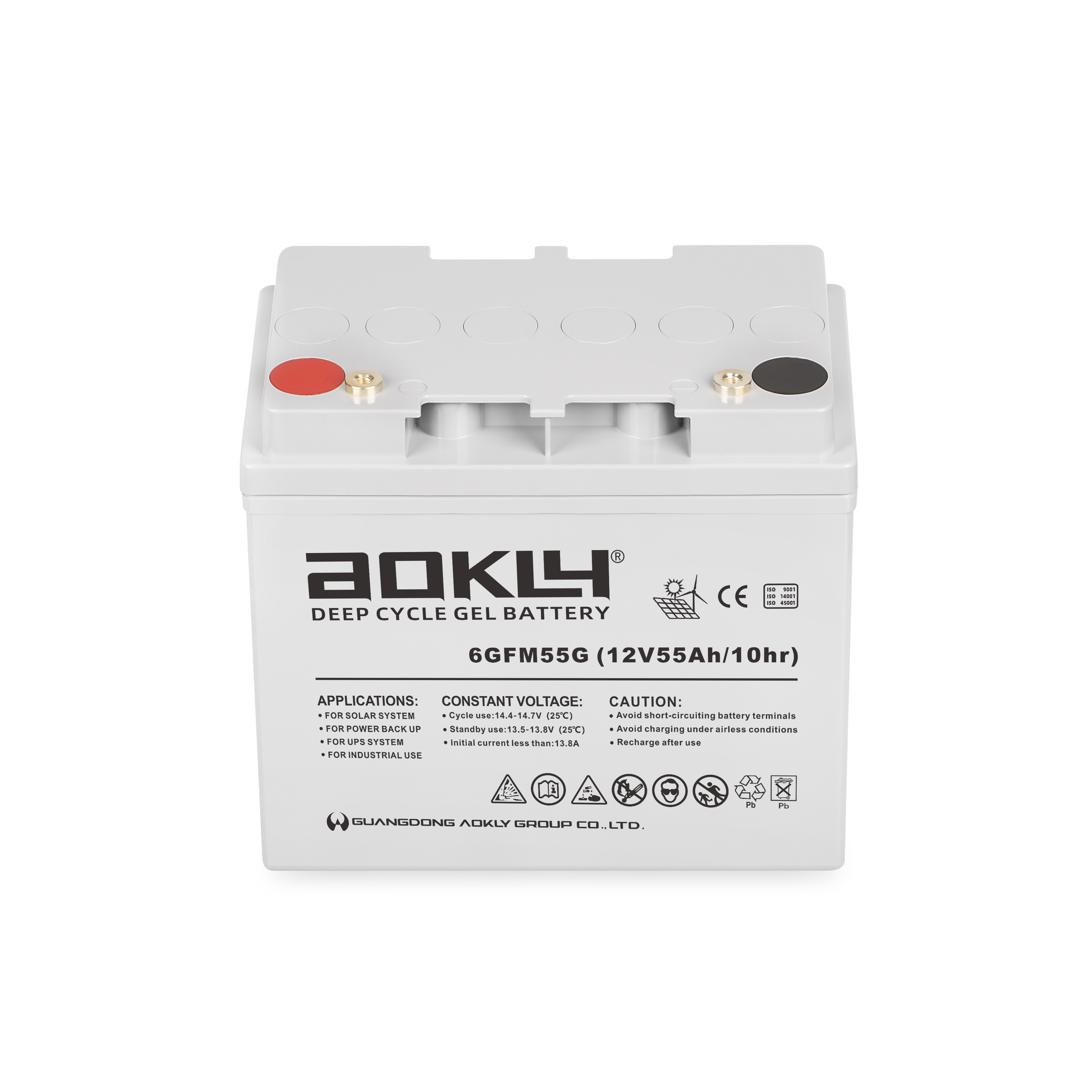

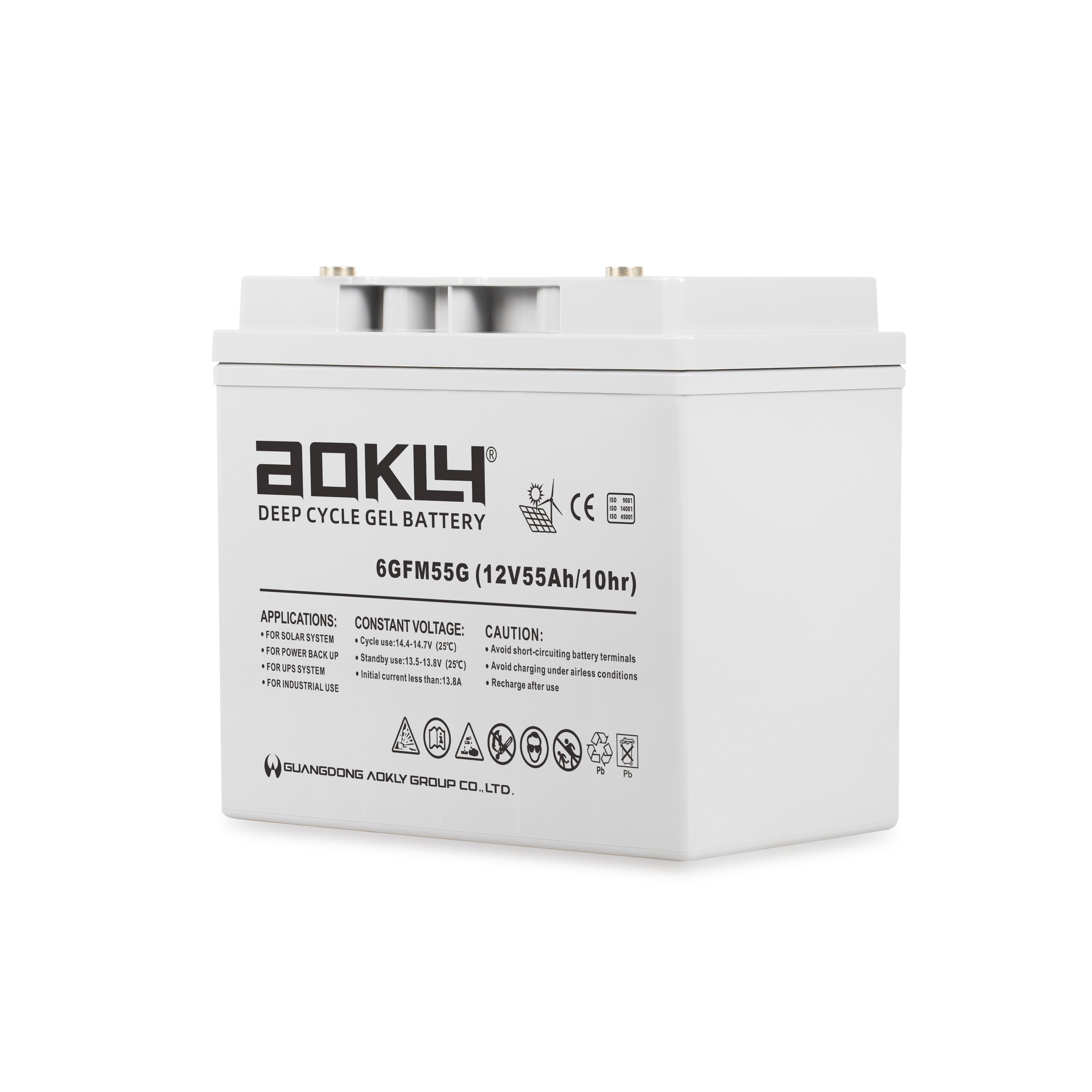

6GFM55G

Description

Voltage : 12V
Capacit : 55Ah
Size : 227*138*205*210（L*W*H*T）mm

Quick Inquiry

Features

1.Capacity range:33ah-250ah
2.Voltage class: 12V
3.Long design life(25℃): 18 years for 12V
4.Low self-discharge rate:≤2.5% per month
5. High sealed reaction efficiency:≥98%
6.High specific energy density
7.Excellent charge acceptance
8.Wide operation temperature: ﹣40℃ to +60℃
9.Grid: patent primary and secondary grid structure design
10.Positive plate: pasted flat type,high temperature and humidity formation technics
11.Separator: high porosity PE separator with glass fibre good cyclic characteristics and lower resistance
12.Battery container: High strength ABS(UL94-HB) and UL94-VO is optional
13.Post sealing: patent double layer post sealing
14.Safety valve: narrow operate pressure range and equipped with explosion-proof arrester and acid filter

Compliant Standards: IEC60095、GB/T19638-2005 Passed ISO9001/ISO14001/OHSAS18001/CE

GFM 2V Series

NO.	ITEMS	VOLTAGE	CAPACITY C 10	DIMENSION(mm)				NET WEIGHT	TERMINAL
NO.	NO	VOLT	AH/10HR	Length	Width	Height	Total Height	(KGS)	TYPE
1	6GFM33G	12	33	201	131	170	170	10	F3
2	6GFM38G	12	38	198	166	170	170	11.9	F3
3	6GFM40G	12	40	197	172	170	170	11.9	F3
4	6GFM55G	12	55	227	138	205	210	16	F4
5	6GFM65G	12	65	330	172	180	185	19.9	F4
6	6GFM75G	12	75	260	168	209	214	23	F4
8	6GFM100G	12	100	329	172	216	221	29	F4/F8
9	6GFM120G	12	120	409	177	207	234	34.5	F9
10	6GFM150G	12	150	483.5	170	241	241	43.6	F4/F10
11	6GFM200G	12	200	522	239	216	221	58.8	F5/F11
12	6GFM250G	12	250	520	269	220	225	70.8	F5/F11
13	GFM200G	2	200	173	111	329	365	13.1	F7
14	GFM300G	2	300	171	151	330	366	18.2	F7
15	GFM400G	2	400	211	176	329	367	25.5	F7
16	GFM500G	2	500	241	172	330	364	30.3	F7
17	GFM600G	2	600	301	175	331	366	36.9	F7
18	GFM800G	2	800	410	176	330	365	51.1	F7
19	GFM1000G	2	1000	475	175	330	350	60.2	F7
21	GFM1500G	2	1500	401	351	342	378	96.8	F7
22	GFM2000G	2	2000	491	351	343	383	123.8	F7
23	GFM3000G	2	3000	712	353	341	382	182.8	F7
