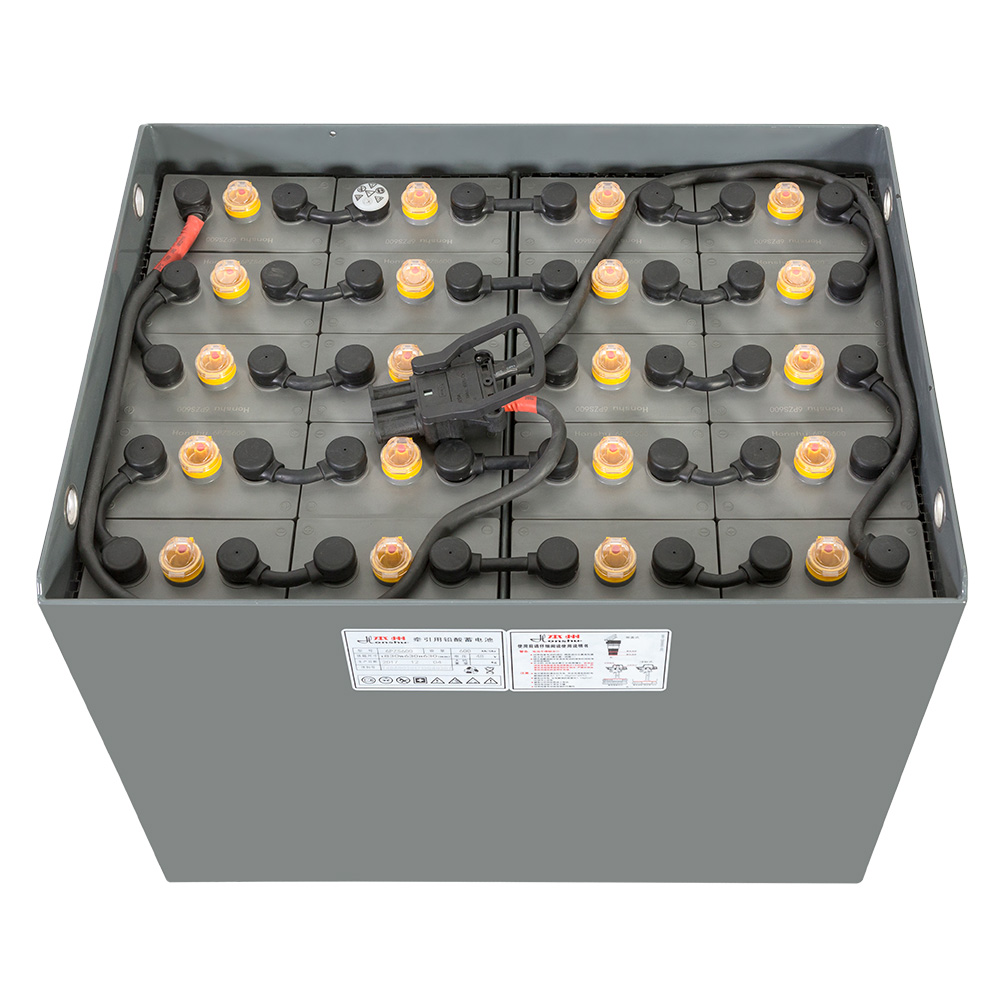

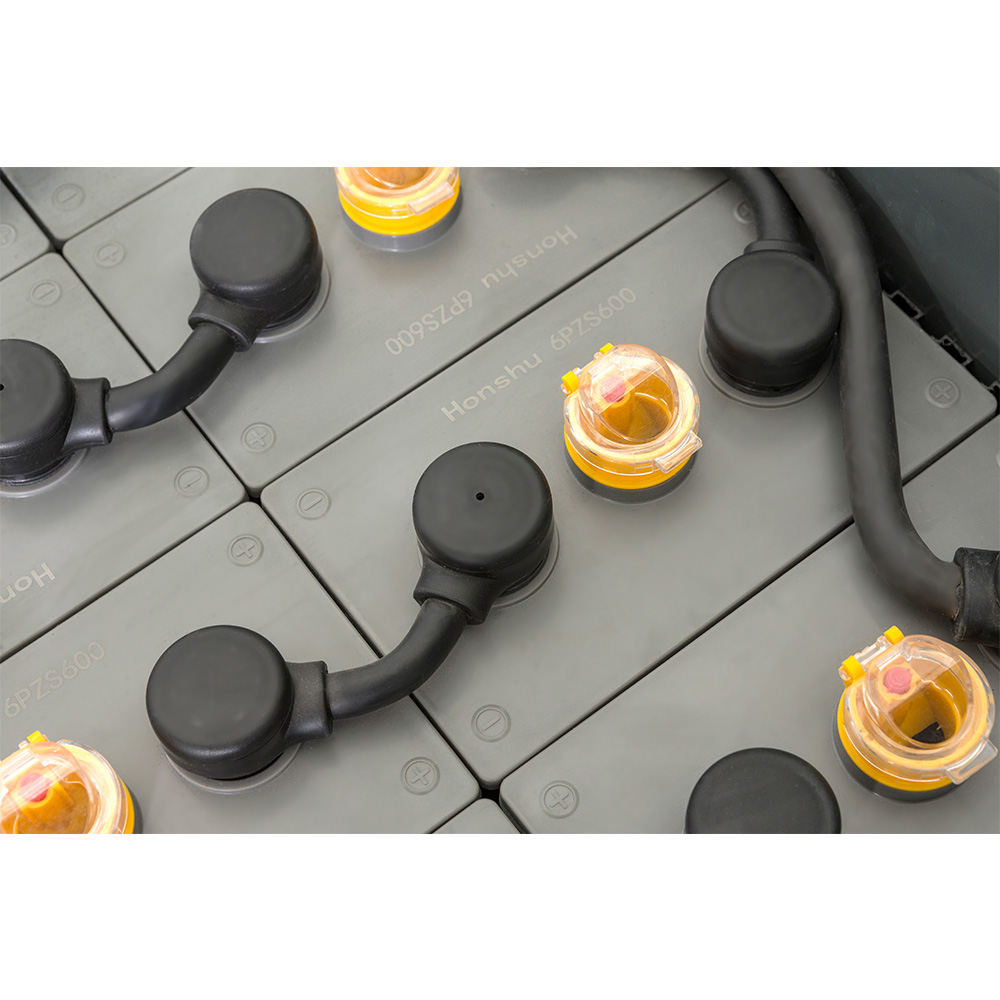

6PZS600

Description

Voltage : 48V
Capacity : 600Ah
Size : 119*198*520（L*W*H）mm

Quick Inquiry

Features

1.Battery cycle life
Our automobile lead battery achieve 1500 cycles on average when operated to 80% depth of discharge ,which is the same performance as the most majority of battery made in Europe.

2.Tubular plate architecture
Tubular plate,engineered for heavy duty applications, can deliver more power in the same size container and more capacity and longer run times and also maintain higher voltages for faster speeds and quicker lifts.

3.Unique electrode structure of Uneven (the concave-convex ) plate
The unique uneven structure negative plate (the concave-convex ) increases the strength and toughness of the grid inside and enhances the bonding intensity of the active substance on the grid, which lengthens more than 40% battery life than average.

4.Upgraded design on battery housing to avoid leakage
Improvements are made on the rubber of the battery housing in order to prevent any leakage. Furthermore, housing of the battery is all made of fire-resistant materials to avert any possible fire incident due to incurrence of short- circuit .

DIN Standards

DIN Standards
Model	Voltage	Capacity	Overall Dimensions (mm)			Weight
Model	Voltage	Capacity	Length	Width	Height	Dry weight	Wet weight

2PZS120	2V	120Ah	47	198	335	6.7	8.1
3PZS180	2V	180Ah	65			9.1	11.2
4PZS240	2V	240Ah	83			11.5	14.3
5PZS300	2V	300Ah	101			14.0	17.4
6PZS360	2V	360Ah	119			16.4	20.5
7PZS420	2V	420Ah	137			18.8	23.7
8PZS480	2V	480Ah	155			21.2	26.8
9PZS540	2V	540Ah	173			23.6	29.9
10PZS600	2V	600Ah	191			26.0	33.0

2PZS140	2V	140Ah	47	198	395	7.8	9.4
3PZS210	2V	210Ah	65			10.6	13.0
4PZS280	2V	280Ah	83			13.4	16.6
5PZS350	2V	350Ah	101			16.2	20.2
6PZS420	2V	420Ah	119			19.0	23.8
7PZS490	2V	490Ah	137			21.8	27.4
8PZS560	2V	560Ah	155			24.6	31.1
9PZS630	2V	630Ah	173			27.3	34.7
10PZS700	2V	700Ah	191			30.1	38.3

2PZS160	2V	160Ah	47	198	415	8.5	10.4
3PZS240	2V	240Ah	65			11.6	14.4
4PZS320	2V	320Ah	83			14.7	18.4
5PZS400	2V	400Ah	101			17.8	22.5
6PZS480	2V	480Ah	119			21.0	26.5
7PZS560	2V	560Ah	137			24.1	30.6
8PZS640	2V	640Ah	155			27.2	34.6
9PZS720	2V	720Ah	173			30.3	38.7
10PZS800	2V	800Ah	191			33.4	42.7

2PZS180	2V	180Ah	47	198	480	9.6	11.7
3PZS270	2V	270Ah	65			13.0	16.2
4PZS360	2V	360Ah	83			16.5	20.7
5PZS450	2V	450Ah	101			20.0	25.2
6PZS540	2V	540Ah	119			23.5	29.8
7PZS630	2V	630Ah	137			27.0	34.3
8PZS720	2V	720Ah	155			30.5	38.8
9PZS810	2V	810Ah	173			33.9	43.3
10PZS900	2V	900Ah	191			37.4	47.9

2PZS200	2V	200Ah	47	198	520	10.5	12.8
3PZS300	2V	300Ah	65			14.3	17.8
4PZS400	2V	400Ah	83			18.2	22.8
5PZS500	2V	500Ah	101			22.0	27.8
6PZS600	2V	600Ah	119			25.9	32.8
7PZS700	2V	700Ah	137			29.7	37.8
8PZS800	2V	800Ah	155			33.5	42.8
9PZS900	2V	900Ah	173			37.4	47.8
10PZS1000	2V	1000Ah	191			41.2	52.8

2PZS230	2V	230Ah	47	198	560	11.8	14.4
3PZS345	2V	345Ah	65			16.1	20.1
4PZS460	2V	460Ah	83			20.5	25.8
5PZS575	2V	575Ah	101			24.9	31.5
6PZS690	2V	609Ah	119			29.2	37.2
7PZS805	2V	805Ah	137			33.6	42.9
8PZS920	2V	920Ah	155			37.9	48.6
9PZS1035	2V	1035Ah	173			42.3	54.3
10PZS1150	2V	1150Ah	191			46.7	60.0

2PZS240	2V	240Ah	47	198	600	12.4	15.2
3PZS360	2V	360Ah	65			16.9	21.1
4PZS480	2V	480Ah	83			21.5	27.1
5PZS600	2V	600Ah	101			26.1	33.1
6PZS720	2V	720Ah	119			30.7	39.1
7PZS840	2V	840Ah	137			35.3	45.0
8PZS960	2V	960Ah	155			39.9	51.0
9PZS1080	2V	1080Ah	173			44.4	57.0
10PZS1200	2V	1200Ah	191			49.0	63.0

2PZS280	2V	280Ah	47	198	690	14.4	17.7
3PZS420	2V	420Ah	65			19.7	24.6
4PZS560	2V	560Ah	83			25.1	31.6
5PZS700	2V	700Ah	101			30.4	38.5
6PZS840	2V	840Ah	119			35.7	45.5
7PZS980	2V	980Ah	137			41.1	52.5
8PZS1120	2V	1120Ah	155			46.4	59.4
9PZS1260	2V	1260Ah	173			51.7	66.4
10PZS1400	2V	1400Ah	191			57.1	73.3

D-250	2V	250Ah	137	198	360	12	18.8
