ALFP-48150(3U）

Description

Voltage : 48V
Capacit : 150Ah

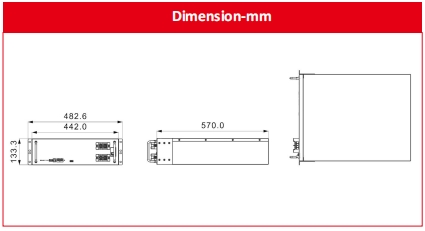

Size : 570*133*442（L*W*H）mm

Quick Inquiry

Features

Longer Cycle Life：Offers up to 10 times longer cycle life and five times longer float/calendar life than lead acid battery, helping timinimize replacement cost and reduce total cost of ownership.

Lighter Weight：About 40% of the weight of a comparable lead acid battery. A'drop in' replacement for lead acid batteries.

Higher Power：Delivers twice power of lead acid battery, even high discharge rate, while maintaining high energy capacity.

Wider Temperature Range：-20~60℃

Superior Safety：Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overchaeging or short circuit situation.

Specification

Basic Parameters	Rated Voltage	48V
	Rated Voltage	150Ah
	Rated Energy	7200wh
	Combination Method	15S1P

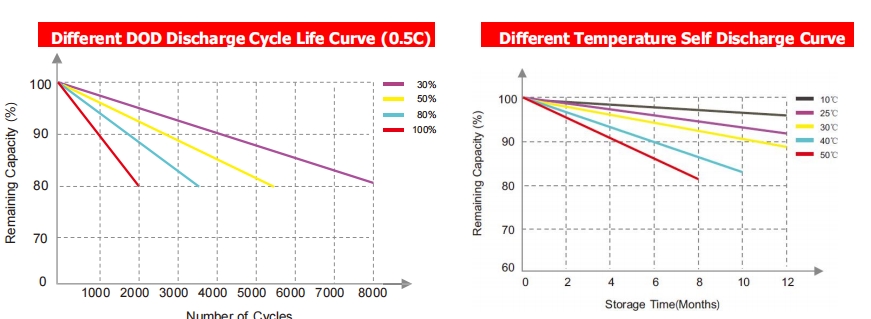

	Cycle Life	≥3500 cycles @80%DOD
	Self Discharge	1%/months
	Efficiency of Charge	≥97%
	Efficiency of Discharge	≥97%
Charge	Charge Voltage	54.0V
	Charge Current (Recomm.)	30A
	Charge Current (Max.)	100A
Discharge	Discharge Cut-off Voltage	40.0V
	Discharge Current(Recomm.)	75A
	Pulse Current	150A（3S）
Environment	Charge Temperature	0℃ to 60℃
	Discharge Temperature	-20℃ to 60℃
	Humidity	-20℃ to 60℃
Physical Characteristics	IP Class	IP30
	Case Material	Metal
	Dimensions ( mm )	570133442mm
	Weight ( kg )	67kg
	Others( optional )	Anti-theft function, LCD display
