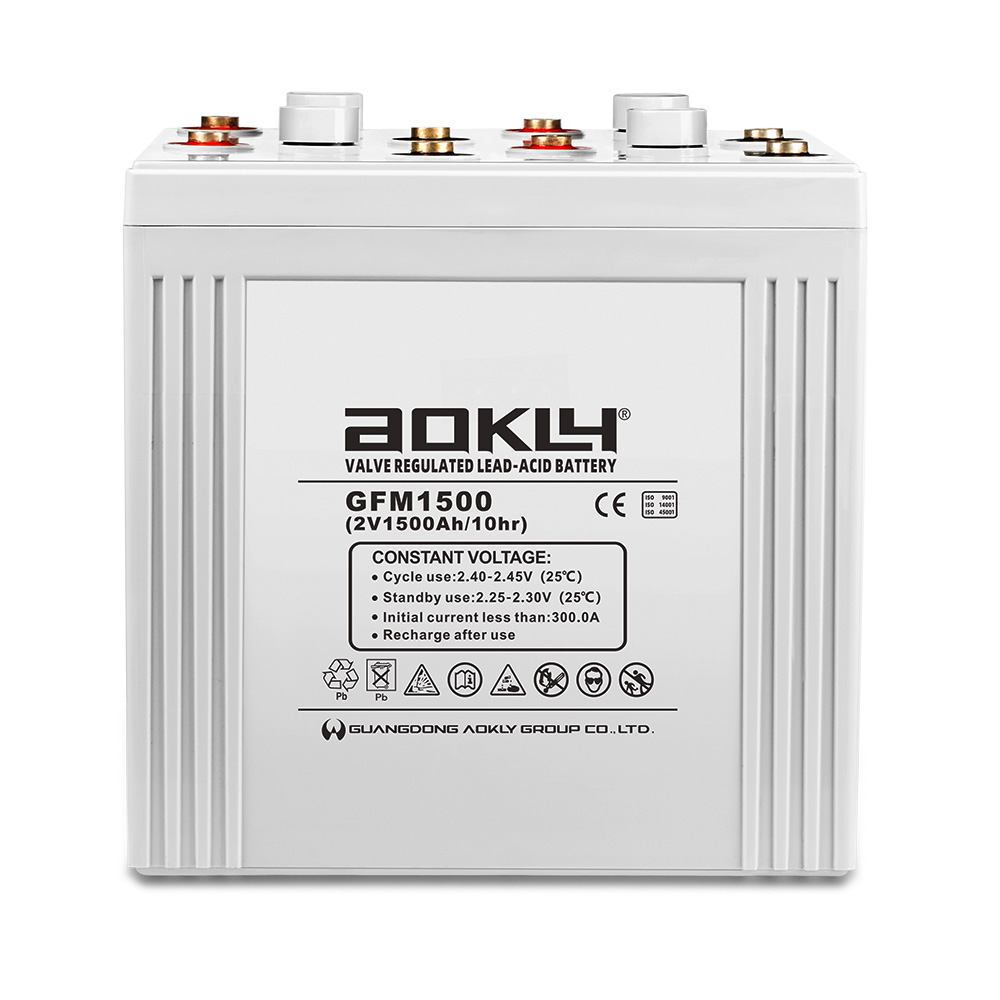

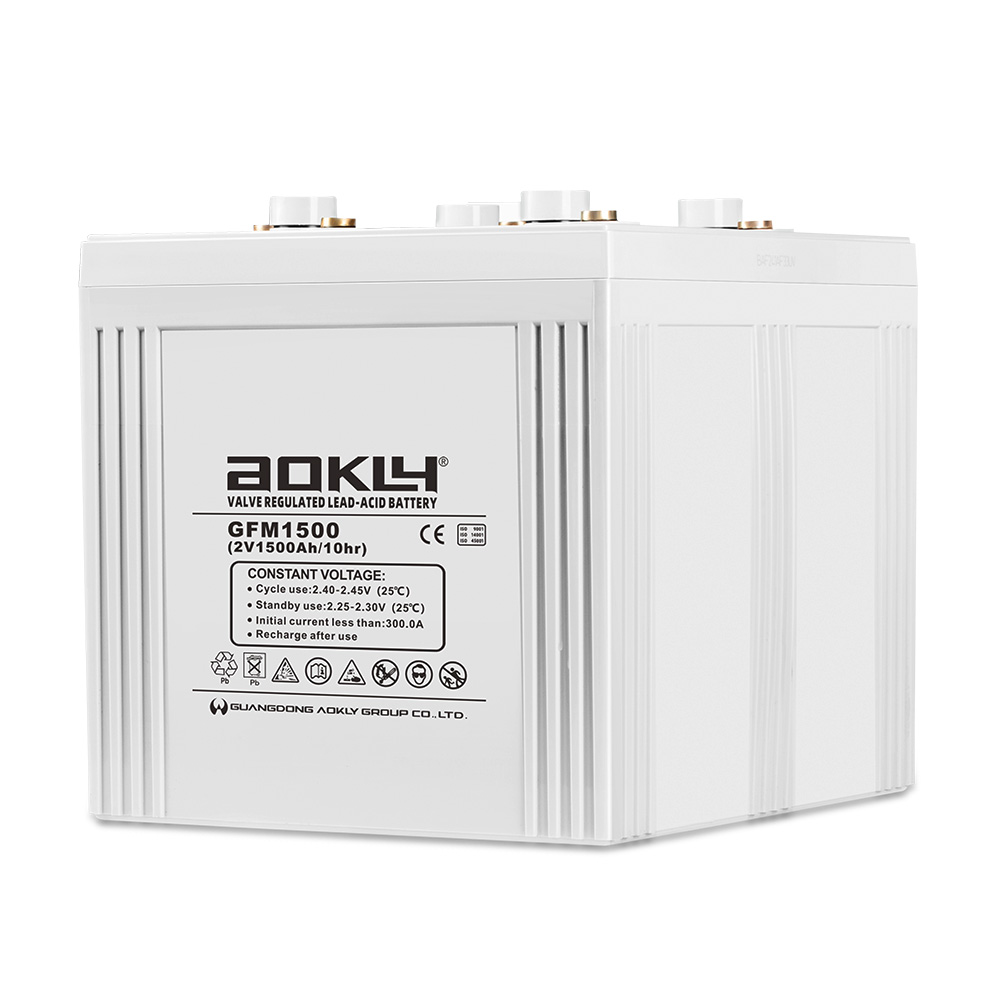

GFM1500

Description

Voltage : 2V
Capacit : 1500Ah
Size : 401*351*342*378（L*W*H*T）mm

Quick Inquiry

Features

1.Capacity range: 100Ah-3000Ah
2.Voltage class: 2V
3.Long design life(25℃): more than 18 years
4.Low self-discharge rate:≤3% per month
5. High recombination efficiency:≥99%
6.Compact structure and high specific energy
7.Wide operation temperature: ﹣20℃ to 60℃
8.Grid: thicker grid and radiative grid structure
9.Positive plate: pasted flat type,latest grid alloy
10.Separator: AGM separator with high absorptive and low resistance
11.Battery container: High strength ABS(UL94-HB) and UL 94-V0 is optional
12.Post sealing: patent multi-layer post sealing with M8 copper insert terminal
13.Safety valve: sensitive operate pressure and reliable equipped with explosion-proof arrester and acid filter

Compliant Standards：GB/T 22199-2008、GB/T18332.1-2009 Passed ISO9001、2001; ISO14001、CE certificate

GFM 2V Series

NO.	ITEMS	VOLTAGE	CAPACITY C 10	DIMENSION(mm)				NET WEIGHT	TERMINAL
NO.	NO	VOLT	AH/10HR	Length	Width	Height	Total Height	(KGS)	TYPE
1	GFM100	2	100	171	72	205	210	5.6	F7
2	GFM200	2	200	173	111	329	365	13.1	F7
3	GFM300	2	300	171	151	330	366	18.2	F7
4	GFM400	2	400	211	176	329	367	25.5	F7
5	GFM500	2	500	241	172	330	364	30.3	F7
6	GFM600	2	600	301	175	331	366	36.9	F7
7	GFM800	2	800	410	176	330	365	51.1	F7
8	GFM1000	2	1000	475	175	330	350	60.2	F7
10	GFM1500	2	1500	401	351	342	378	96.8	F7
11	GFM2000	2	2000	491	351	343	383	123.8	F7
12	GFM3000	2	3000	712	353	341	382	182.8	F7
