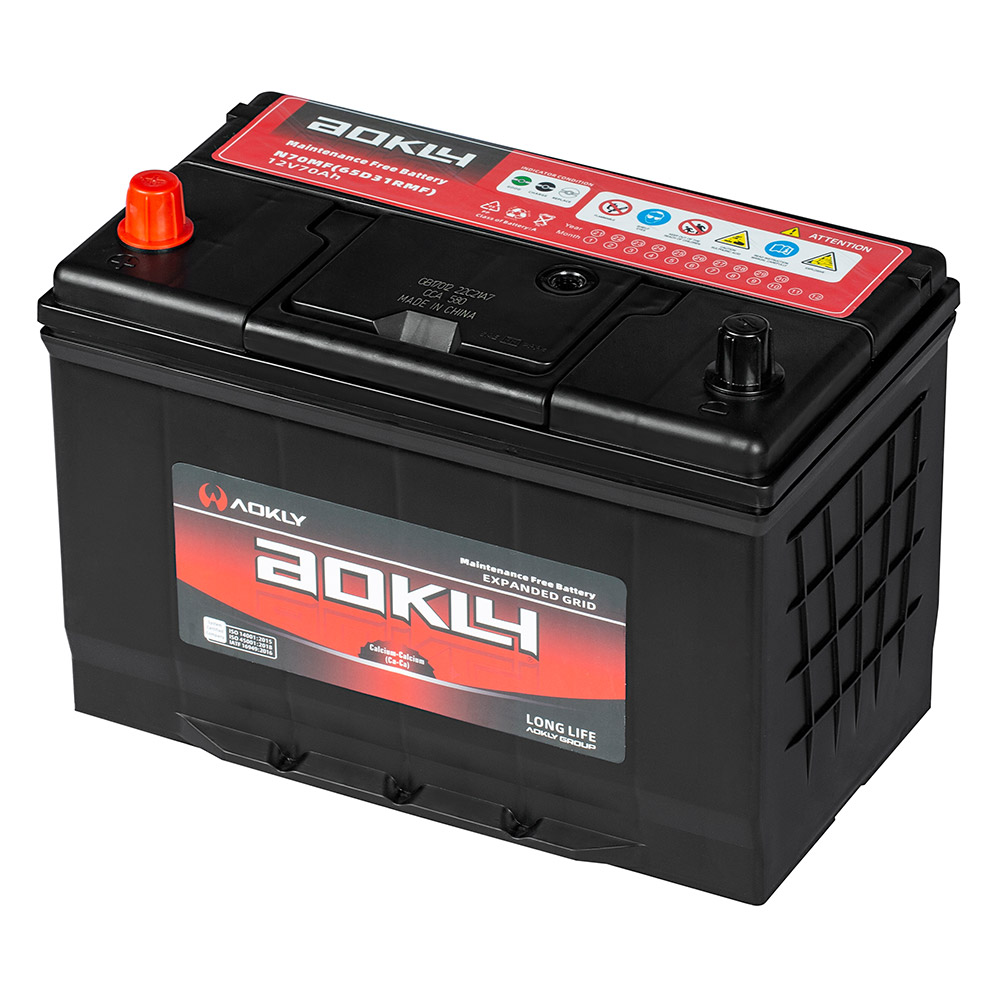

N70MF
Description
Voltage : 12V
Capacit : 70Ah
Size : 304*173*200*220(L*W*H*T)mm
Voltage : 12V
Capacit : 70Ah
Size : 304*173*200*220(L*W*H*T)mm
1. Expanded technology, the unique Pb-Ca alloy formulation, with low water losing has been adopted, enabled the low self-discharge
2. 30% extra starting power compared to a standard battery
3. Extended product life in extreme hot or cold operating temperatures.
4 .Strong polypropylene container, advance lead calcium alloy and special diachylum method
5. The super- thin glass fiber in separator ( or PE envelop) And reduces the short circuit of plates group, reduce the electric resistance
6. Heat sealed lid, maximize strength and prevent electrolyte leakage
JIS Standard Battery (SMF) | ||||||||||
No. | Gr No. | Model | Capacity | RC | Dimension(mm) | Lay-out | Terminal | |||
MINS | Length | Width | Height | T.Height | ||||||
U1-33MF | 12V33AH | 40 | 195 | 127 | 158 | 186 | 1 | C | ||
1 | B20 | NS40MF(32B20RMF) | 12V32AH | 47 | 195 | 127 | 200 | 220 | 1 | A |
2 | NS40LMF(32B20LMF) | 12V32AH | 47 | 195 | 127 | 200 | 220 | 0 | A | |
3 | NS40ZMF(36B20RMF) | 12V36AH | 53 | 195 | 127 | 200 | 220 | 1 | A | |
4 | NS40ZLMF(36B20LMF) | 12V36AH | 53 | 195 | 127 | 200 | 220 | 0 | A | |
5 | B24 | N40MF(50B24RMF) | 12V40AH | 62 | 237 | 127 | 200 | 220 | 1 | A |
6 | N40LMF(50B24LMF) | 12V40AH | 62 | 237 | 127 | 200 | 220 | 0 | A | |
7 | NS60MF(55B24RMF) | 12V45AH | 71 | 237 | 127 | 200 | 220 | 1 | A | |
8 | NS60LMF(55B24LMF) | 12V45AH | 71 | 237 | 127 | 200 | 220 | 0 | A | |
9 | NS60SMF(55B24RSMF) | 12V45AH | 71 | 237 | 127 | 200 | 220 | 1 | B | |
10 | NS60LSMF(55B24LSMF) | 12V45AH | 71 | 237 | 127 | 200 | 220 | 0 | B | |
11 | D23 | 55D23RMF | 12V 60AH | 85 | 230 | 173 | 200 | 220 | 1 | B |
12 | 55D23LMF | 12V 60AH | 85 | 230 | 173 | 200 | 220 | 0 | B | |
13 | 75D23RMF | 12V 65AH | 90 | 230 | 173 | 200 | 220 | 1 | B | |
14 | 75D23LMF | 12V 65AH | 90 | 230 | 173 | 200 | 220 | 0 | B | |
15 | D26 | N50MF(48D26RMF) | 12V 50AH | 81 | 258 | 173 | 200 | 220 | 1 | B |
16 | N50LMF(48D26LMF) | 12V 50AH | 81 | 258 | 173 | 200 | 220 | 0 | B | |
17 | N50ZMF(55D26RMF) | 12V 60AH | 100 | 258 | 173 | 200 | 220 | 1 | B | |
18 | N50ZLMF(55D26LMF) | 12V 60AH | 100 | 258 | 173 | 200 | 220 | 0 | B | |
19 | NS70MF(75D26RMF) | 12V65AH | 108 | 258 | 173 | 200 | 220 | 1 | B | |
20 | NS70LMF(75D26LMF) | 12V65AH | 108 | 258 | 173 | 200 | 220 | 0 | B | |
21 | NX110-5MF(80D26RMF) | 12V70AH | 112 | 258 | 173 | 200 | 220 | 1 | B | |
22 | NX110-5LMF(80D26LMF) | 12V70AH | 112 | 258 | 173 | 200 | 220 | 0 | B | |
23 | D31 | N70MF(65D31RMF) | 12V70AH | 112 | 304 | 173 | 200 | 220 | 1 | B |
24 | N70LMF(65D31LMF) | 12V70AH | 112 | 304 | 173 | 200 | 220 | 0 | B | |
25 | N70ZMF(75D31RMF) | 12V75AH | 122 | 304 | 173 | 200 | 220 | 1 | B | |
26 | N70ZLMF(75D31LMF) | 12V75AH | 122 | 304 | 173 | 200 | 220 | 0 | B | |
27 | NX120-7LMF(95D31LMF) | 12V80AH | 128 | 304 | 173 | 200 | 220 | 0 | B | |
28 | NX120-7MF(95D31RMF) | 12V80AH | 128 | 304 | 173 | 200 | 220 | 1 | B | |
29 | N90MF(105D31RMF) | 12V90AH | 144 | 304 | 173 | 200 | 220 | 1 | B | |
30 | N90LMF(105D31LMF) | 12V90AH | 144 | 304 | 173 | 200 | 220 | 0 | B | |
31 | N100AMF(115D31RMF) | 12V100AH | 160 | 304 | 173 | 200 | 220 | 1 | B | |
32 | N100ALMF(115D31LMF) | 12V100AH | 160 | 304 | 173 | 200 | 220 | 0 | B | |
33 | E41 | N100MF(95E41RMF) | 12V100AH | 180 | 402 | 171 | 202 | 222 | 1 | B |
34 | N100LMF(95E41LMF) | 12V100AH | 180 | 402 | 171 | 202 | 222 | 0 | B | |
35 | F51 | N120MF(135F51MF) | 12V120AH | 218 | 506 | 180 | 208 | 231 | 3 | B |
36 | N120LMF(135F51LMF) | 12V120AH | 218 | 506 | 180 | 208 | 231 | 4 | B | |
37 | G51 | N150MF(165G51MF) | 12V150AH | 280 | 506 | 221 | 210 | 233 | 3 | B |
38 | N150LMF(165G51LMF) | 12V150AH | 280 | 506 | 221 | 210 | 233 | 4 | B | |
39 | N165MF | 12V165AH | 300 | 506 | 221 | 210 | 233 | 3 | B | |
40 | N170MF | 12V170AH | 330 | 506 | 221 | 210 | 233 | 3 | B | |
41 | N180MF(195G51MF) | 12V180AH | 330 | 506 | 221 | 210 | 233 | 3 | B | |
42 | H52 | N200MF(210H52MF) (8D) | 12V200AH | 365 | 515 | 265 | 215 | 238 | 3 | B |
